The phasor diagram: SHM phase questions in one picture
The phasor diagram turns SHM phase questions in JEE into angles on a circle, and gives v max = A ω and a max = A ω².
Watch lecture 7
Watch on YouTube Length
What this lecture covers
Uniform circular motion builds the phasor diagram, where the phase of the SHM equation is an angle on the circle and the shadow gives x at every t. Speed ω r and acceleration ω² r towards the centre project to v max = A ω and a max = A ω², peaking at opposite places. Phase π puts the particle at the mean position with v = −A ω, and phase 3 π/2 reads the same way.
In this lecture
- Play from SHM so far: the shadow of the circle
- Play from The phasor diagram and the phase angle

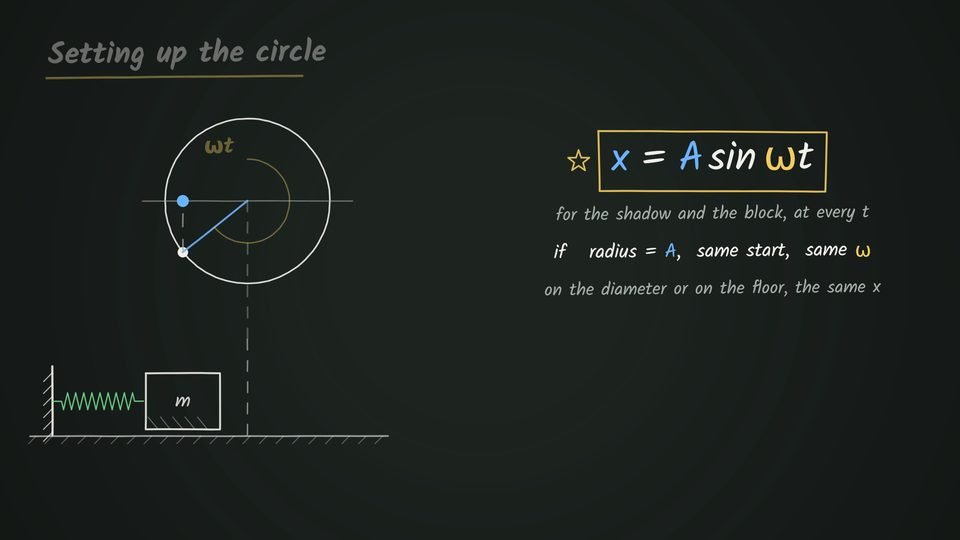

- Play from Setting up the reference circle
- Play from The shadow gives x at every t
- Play from Why we use the circle
- Play from Speed and acceleration on a circle
- Play from Max speed A ω, max a A ω²
- Play from Phase π and phase 3 π/2 on the circle
- Play from A quarter turn takes T/4
- Play from Recap: the phasor diagram
