SHM · Lecture 20 of 26
A plank on two rotating rollers: prove SHM and find T
A plank on two rotating rollers does SHM under friction for JEE Advanced: F = −(mu M g/L) x, and its mass drops out of T.
Watch lecture 20
Watch on YouTube Length
What this lecture covers

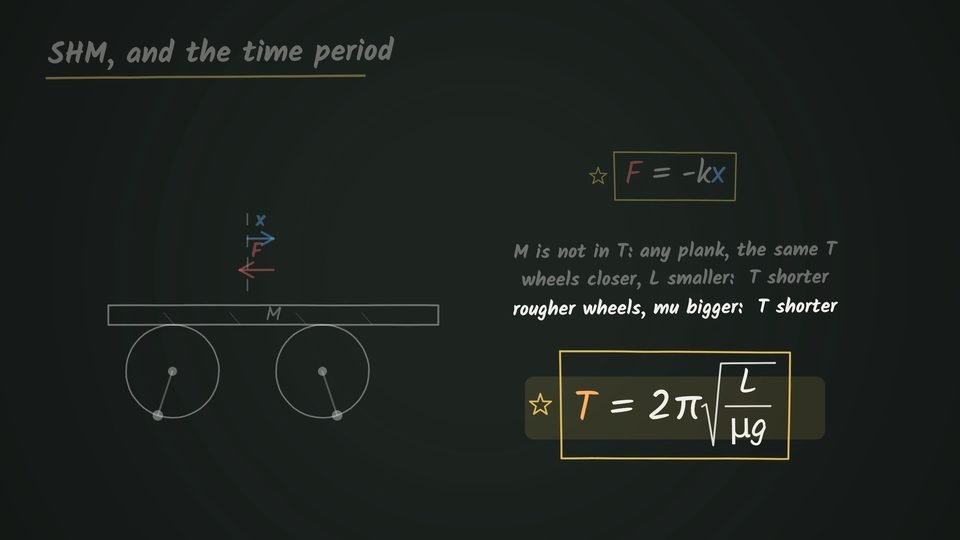

Two rollers turn towards the middle and the plank slides on both, so kinetic friction mu N acts at each. Centred, the plank is in equilibrium. Shifted by x it cannot rotate, so zero torque fixes N1 and N2, and the unequal frictions give F = −(mu M g/L) x. That is SHM with k = mu M g/L, so the mass drops out of T. Doubling the roller spacing multiplies T by root 2, and the last case reverses the rollers.
In this lecture
- Play from SHM proof steps, plank on two rollers
- Play from The question: show SHM, find T
- Play from Equilibrium of the plank in the middle
- Play from Shifting by x: normals and torque
- Play from Limits of x; which normal is larger
- Play from Unequal frictions and the net force
- Play from The force F = −(mu M g/L) x
- Play from Finding ω and T of the plank
- Play from Doubling L, then numbers
- Play from Rollers turned the other way
