Physical pendulum and torsional pendulum

By Lalit, IIT Madras

Physical and torsional pendulums for JEE SHM: T = 2 π root(I/mgd) for a hinged rod and a semicircular disc, and the least period at d = K.

Watch lecture 18

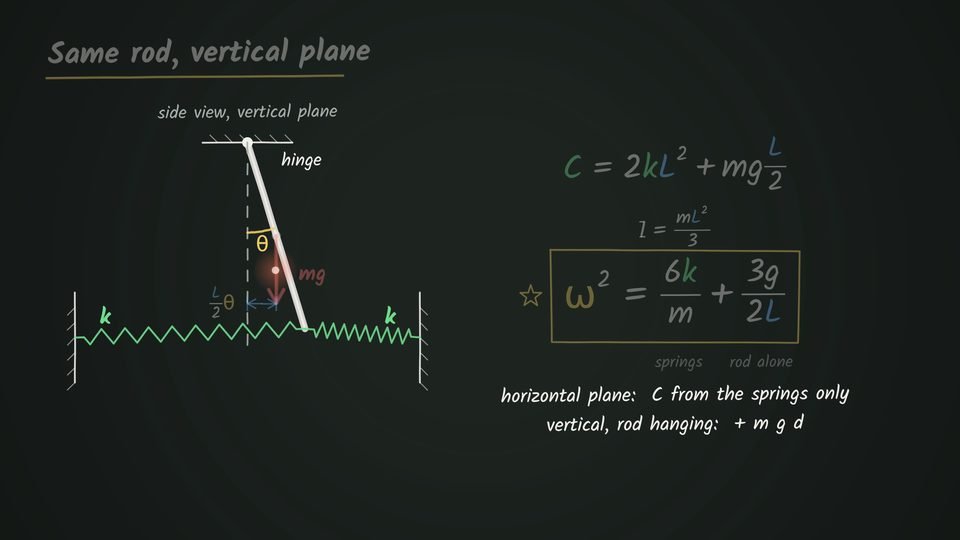

A rod hangs from a hinge at the top, tilted by an angle θ in a vertical plane, with its weight mg at the middle and a horizontal spring of constant k on each side of its lower end, beside the boxed formula ω² = 6k/m + 3g/(2L).

Watch on YouTube Length

What this lecture covers

For a physical pendulum the weight acts at the centre of mass, and its torque about the hinge gives T = 2 π root(I/(m g d)). Plotting a hinged rod's period against the hinge distance finds the least period at d = K, and a semicircular disc follows. Springs on a hinged rod add restoring torque, and in a vertical plane the weight adds its own. Twisting a wire gives the torsional pendulum, T = 2 π root(I/C), with no small-angle step.
